FPV T7
FPV T7
FPV T7
Carbon fiber frame — lightweight, strong, and highly durable
High speed and excellent maneuverability
Ready for deployment with various payload options
Easy to operate, even for less experienced users
Customizable to meet specific client requirements
Weight
1.3 kg to 2.5 kg
FLIGHT DURATION
15 min
SPEED
up to 35 m/s
CONTROL FREQUENCIES
ELRS 750-1020 MHz
Communication range
8-15 km
FRAME
7 inches
BATTERY
8400 mAh
ANALOG VIDEO
5.8 GHz, 1.2 GHz
payload
3 kg max

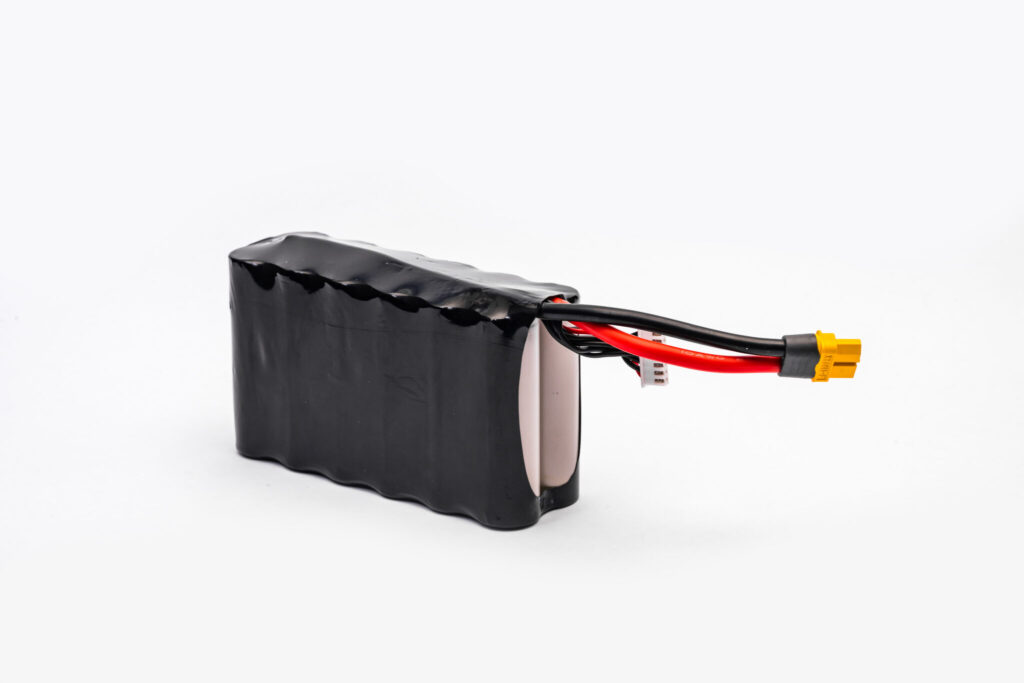

BATTERY BT7
Vertical arrangement of Molicel INR21700-P42A high-current Li-ion cells
Technical specifications:
Weight: 850 g
Capacity: 8400 mAh
Rated voltage: 22.2 V
Full charge: 25.2 V
Dimensions: 140 × 70 × 60 mm
Energy output: 186 Wh
Rated discharge current: 60 A
Maximum discharge current: 90 A
Operating temperature: -20 to +40 °C

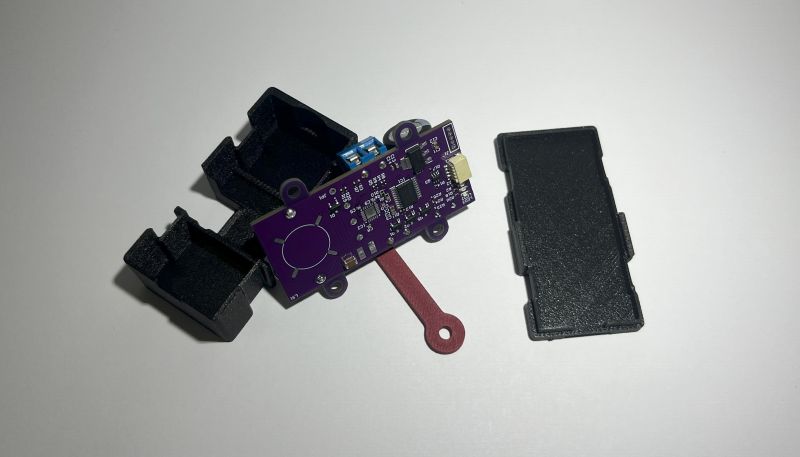

Initiation Module
Designed specifically for kamikaze-type drones. This device is optimized for mounting on attack UAVs, serving as a reliable initiation system. It uses an accelerometer that triggers detonation upon impact at any angle and orientation.
Supported activation modes:
Remote control via transmitter
Automatic activation upon impact via mechanical "whisker" contacts
Its compact size and dual independent impact sensors ensure reliable operation under all conditions.
Technical Specifications:
Weight: 23 g
Impact Sensors: 2 (independent)
Self-Destruct Timer: 30 minutes (armed state)
Safety Timer: 60 seconds
Power Supply: 5–12 V (flight controller) / CR2032 (integrated cell)
Backup Power: from the control unit
Dimensions: 58 × 32 × 18 mm
Operating Temperature Range: –20 to +40 °C
Detonator Compatibility: EDP or equivalent
Mounting: direct attachment to munition
